Jazzy® Carbon

We like to think of the Jazzy® Carbon folding power wheelchair from Pride Mobility as the ultimate travel companion. Thanks to its exceptional portability and ultralight carbon fiber frame, this electric wheelchair can accompany you on journeys big and small, no matter where life takes you.

In this post, we’ll discuss the main methods of transportation that are perfect for traveling with your Jazzy Carbon and go over some key points to keep in mind when you’re on the move.

Why Jazzy Carbon?

Simply, this is Pride’s most travel-friendly electric wheelchair. It was built with convenience in mind, without sacrificing the industry-leading performance and quality you’ve come to expect from Jazzy. What attributes help it stand out?

• Lightweight: Only 39 lbs. without batteries and 43.6 lbs. with batteries
• Portable: Folds flat and unfolds in just seconds
• Comfortable: Front suspension, padded seat back
• Storage space: Pockets on seat back and under seat
• Battery: Airline-compliant lithium battery

Because the Jazzy Carbon folds flat, it can be stored easily in a variety of environments. And not only does it unfold in literally a snap, the unit can be unfolded using just one hand. See how in this video, part of our Mastering Mobility series.

With our Jazzy Travel Bag Kit, you can conveniently store and transport your Jazzy folding power wheelchair like never before. With storage options for both your main unit and batteries, you can be sure your powerchair will be protected, and you can tow the unit behind you like luggage. Find out more on our Travel Mobility webpage.

Airline Travel

Thanks to its lithium battery, Jazzy Carbon is designed for airline travel. The FAA allows you to bring lithium batteries up to 300Wh or less on an airplane. The batteries can be checked or brought as a carry-on.

If the battery stays on the folding power wheelchair, it must be protected against other baggage. If not, the battery must be removed, battery terminals covered, and the battery must be taken on as carry-on luggage.

The U.S. Department of Transportation has details on its website for those with electric wheelchairs and other assistive devices who plan on flying. This will give you a better understanding of how to prepare for a flight with your Jazzy Carbon, and we encourage you to consult your airline prior to your flight to ensure your unit and its lithium-ion batteries are permitted.

Bus and Train Travel

For those traveling by bus, van, or train, an electric wheelchair can be accommodated on board if it does not exceed 30 inches wide by 48 inches high. The Jazzy Carbon measures 24 inches wide by 19 inches high, which means it easily meets the mark.

Additionally, federal guidelines indicate that the total weight of the electric wheelchair and the user cannot exceed 600 pounds, as this is the minimum design load required for a lift. Because the Jazzy Carbon weighs only 39 lbs. and its maximum weight capacity is 300 lbs., it’s guaranteed to meet the requirements to safely board a bus or train.

However, because of its compact nature, the Jazzy Carbon is easily stowed in bus luggage compartments. If properly secured, it should remain protected from damage during transport. Be sure to consult the bus company prior to your trip to arrange the proper accommodation.

Amtrak has detailed accessible travel services on its website, outlining the assistance it will provide to passengers who use a wheeled mobility device. You’ll have the option of remaining seated in your Jazzy Carbon for the duration of the ride or transferring to an accessible seat while stowing your powerchair nearby.

Cruise Travel

Jazzy Carbon is perfect to bring aboard a cruise, as its lightweight and compact nature can help you get around the ship efficiently, with access to many of the of the onboard activities.

However, it’s important to note that cruise lines such as Carnival have unique accommodations for guests with limited mobility, including a variety of accessible staterooms. We encourage you, as with airlines, buses, and trains, to research your options ahead of time.

Car Travel

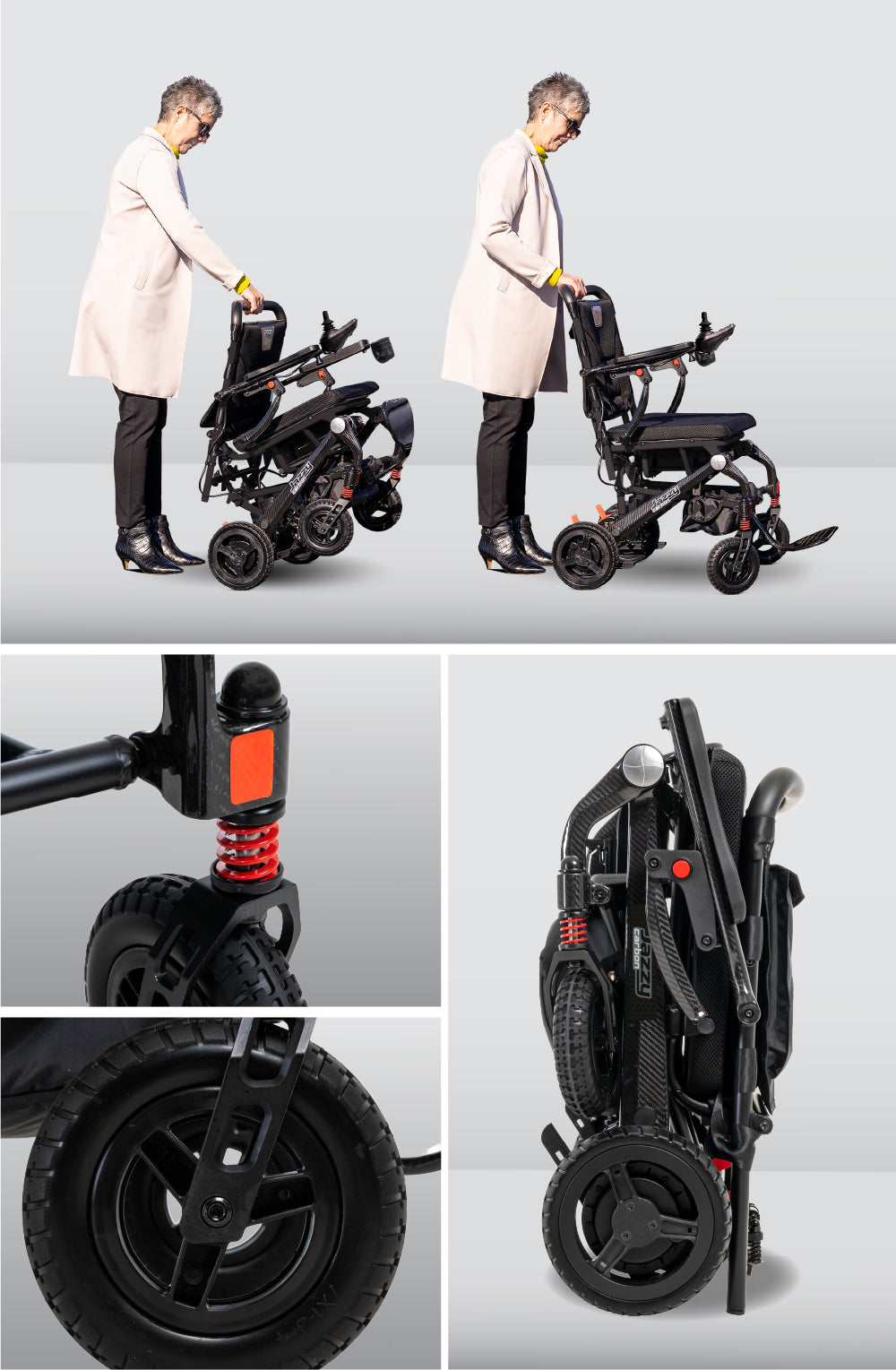

The Jazzy Carbon folds nearly flat for optimal storage. It fits into most trunks of sedans and SUVs, which means if you’re taking a short trip by car, it’s easy to bring along.

Similarly, if you require the use of a taxi, Uber, or Lyft, you shouldn’t have a problem folding up your electric wheelchair and storing it in the trunk. But if you call for an Uber or Lyft, just be sure to ask ahead of time if there will be enough trunk space to accommodate your Jazzy Carbon.

This video shows you how easy it is to fold up this electric wheelchair and store it in the trunk so you can get moving in just seconds.

The Ultimate Travel Companion

Travel has never been easier with an electric wheelchair. Lightweight and portable, the Jazzy Carbon folding power wheelchair from Pride Mobility takes you to where you want to go and helps you get around once you’re there. Whether it’s a grand getaway vacation or a weekend trip to see the family, this folding electric wheelchair gives you mobility and control to do it all.

Get started toward the ultimate in travel mobility today and use our Find A Dealer tool to locate a local provider in your area.

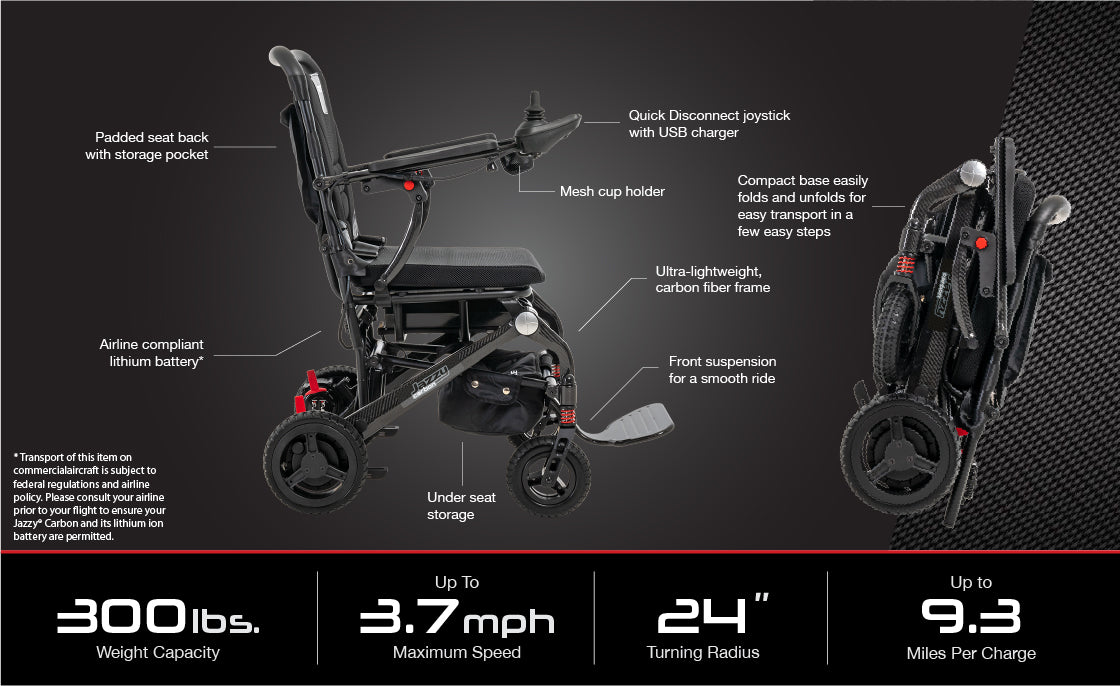

CATEGORY	SPECIFICATION
Model	Jazzy® Carbon
Weight Capacity	300 lbs.
Turning Radius1	24"
Maximum Speed1	Up to 3.7 mph
Ground Clearance3	2"
Overall Length3	37"
Overall Width3	24"
Seat-to-Ground Height	19"
Seat-to-Foot Platform Height	14.5" (no adjustment)
Front Wheels	7"
Rear Wheels	8.5"
Seat-to-Floor Range with Standard Cushion	20.75"
Seat-to-Floor Range without Cushion	18.75"
Power Elevating Seat	NA
Seat Weight(s)	NA
Battery Sizes	24V 12AH (288WH)
Suspension	Front
Total Weight Without Batteries3,5	39 lbs.
Total Weight With Batteries3,5	43.6 lbs.
Heaviest Piece When Disassembled3	N/A
Standard Seating	Material: Black, Foam Dimensions: 17" x 17"
Maximum Seat Size	17" x 17"
Per Charge Range	Up to 9.3 miles
Drivetrain	24v/250W Brushless motors
Standard Electronics	35A Brushless Micon
HCPCS Codes	Non-coded: K0899
Braking System	Regenerative and electromechanical
Battery Weight4	4 lbs.
Battery Charger	Off-board, 2-amp lithium-ion
Weight of Heaviest Piece	NA unit folds and doesn't disassemble
Warranty	Frame: Lifetime limited; Drivetrain: 1-year limited; Electronics: 1year limited; Batteries: 1-year limited
Notes: 1 Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition, and tire condition. This specification can be subject to a variance of (+ or -) 10%. 2 Tested in accordance with ANSI/RESNA, MC Vol2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity. 3 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or -) 3%. 4 Battery weight may vary based on battery manufacturer. 5 Includes standard seat weight.
All specifications subject to change without notice. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
Note: Transport of this item on commercial aircraft is subject to federal regulations and airline policy. Please consult your airline prior to your flight to ensure your Jazzy® Carbon and its lithium ion battery are permitted. FDA Class II Medical Device* Jazzy Travel Bag Kit Jazzy Battery Bag Additional Battery Simplicity Cushion Attendant Control Bracket Headrest Purple Heart Patch Army Patch Navy Patch Air Force Patch Marines-Patch Meeting and Exceeding High Standards for your Peace of Mind. Your Pride product has undergone thorough product testing to ensure safety, durability and performance. Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use. The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA). The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team. All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride. Some of the items our testing criteria include are: Product Stability & Brakes Effectiveness Tests Fatigue & Impact Strength Verification Tests Overall Product Performance Verification Dimensional Requirement Compliance Product Durability & Reliability Testing Material Protective Coating Testing Verification Misuse and Abuse Testing Ergonomic Verification Environmental Testing for Adverse Weather Operation Conditions Electronic Systems Performance and Durability Chemical and Bio-Contamination Analysis Testing for Toxicity Verification Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components UL94VO Flammability Testing for Compliance of Plastic Components Electromagnetic Compatibility (EMC) Warranty Lifetime limited on frame; 1-year limited on electronics; 1-year on drive motors 1- limited on batteries.
