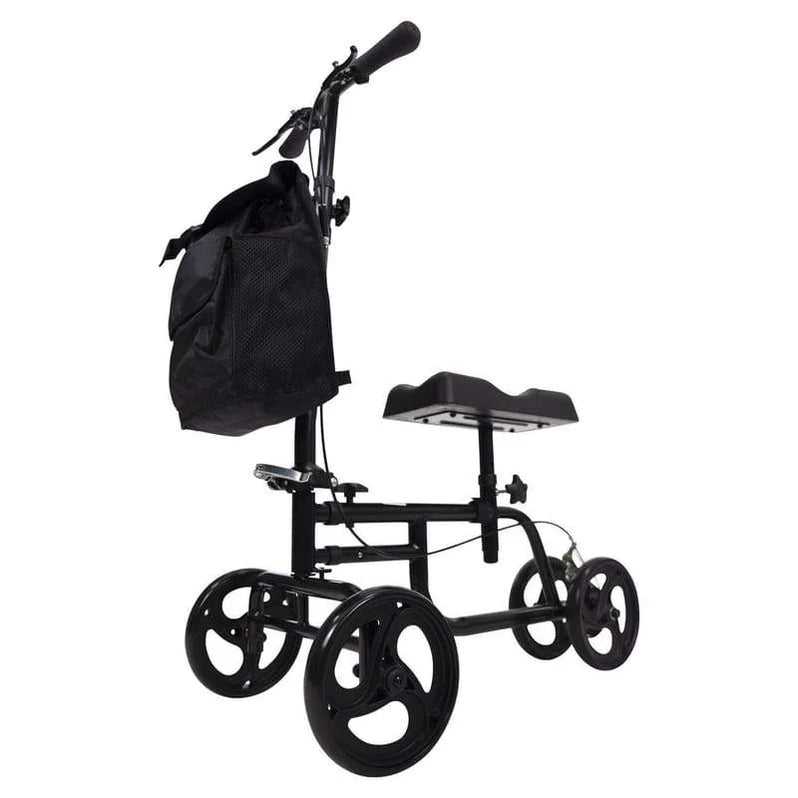

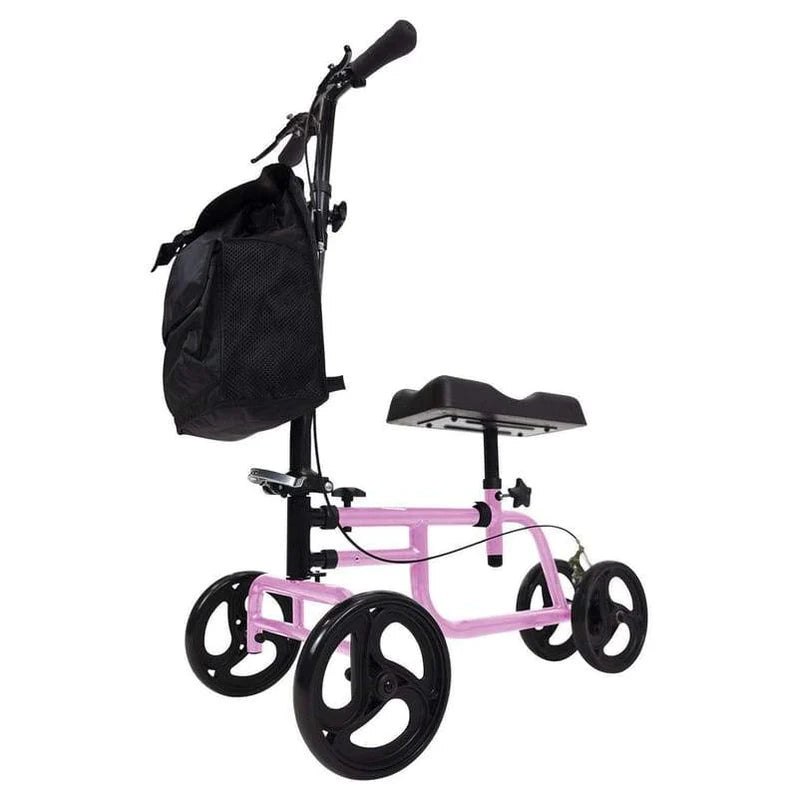

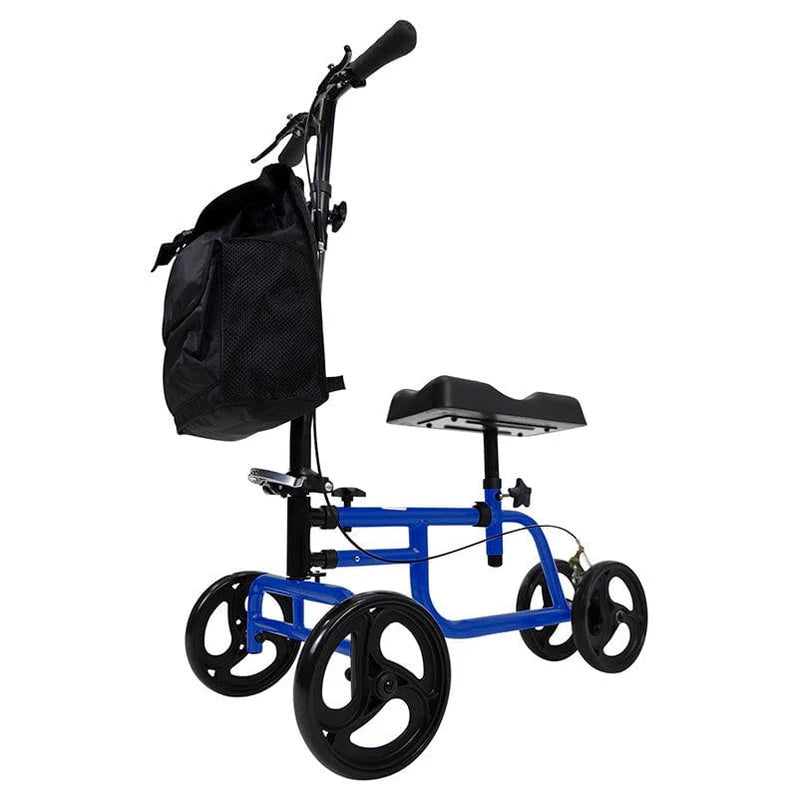

Knee Walker

• Knee Pad Height: Adjustable between 18"-23"
• Handle Bar Height: Adjustable in 1" increments ranging from 33" to 41"

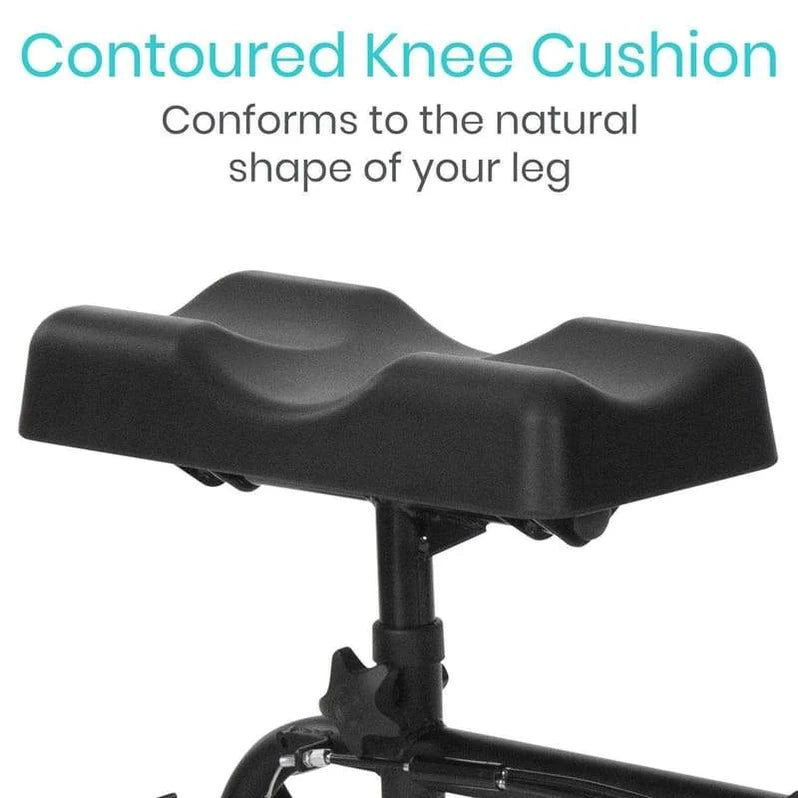

• Knee Pad Dimensions: 14" x 7" (at widest part)
• Front Wheels + Frame: 16" across (widest point of scooter)

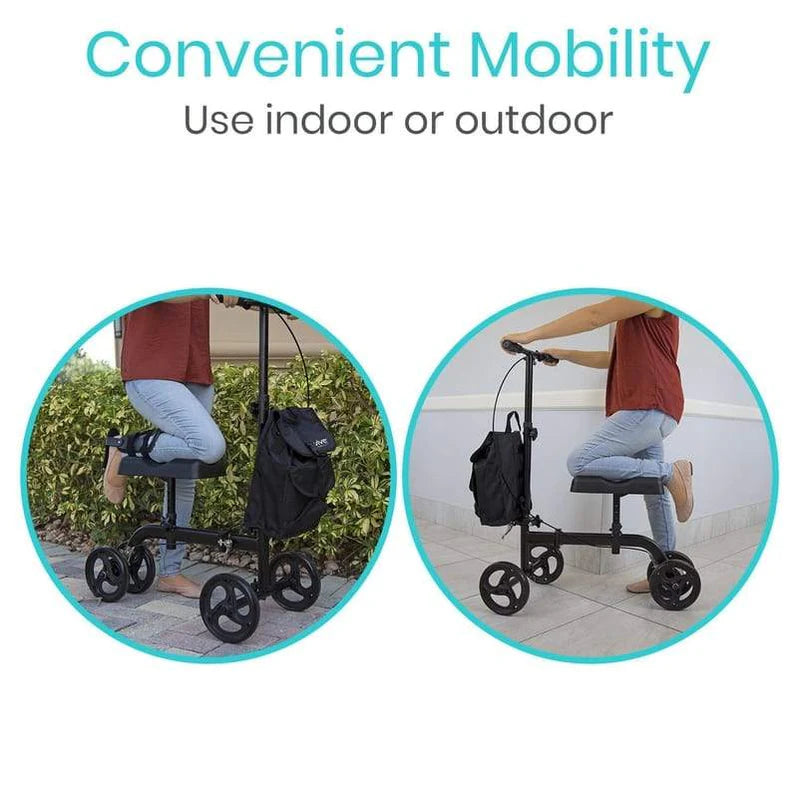

• Four 8-inch polyurethane wheels provide an exceptionally stable base for easy maneuverability both indoors and outdoors.

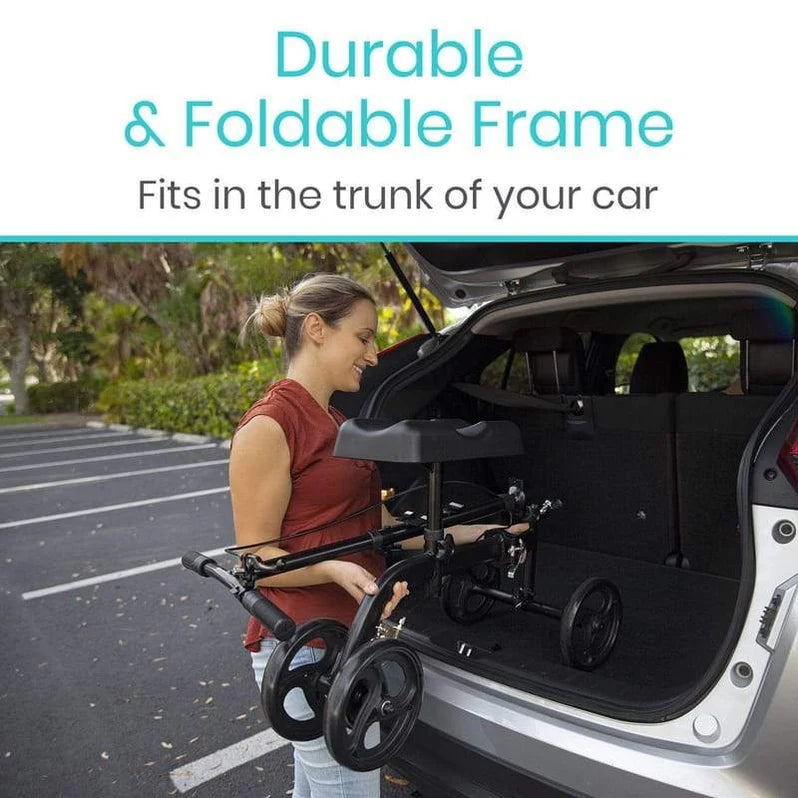

• Two fold points and the removable platform allows the scooter to be easily transported.

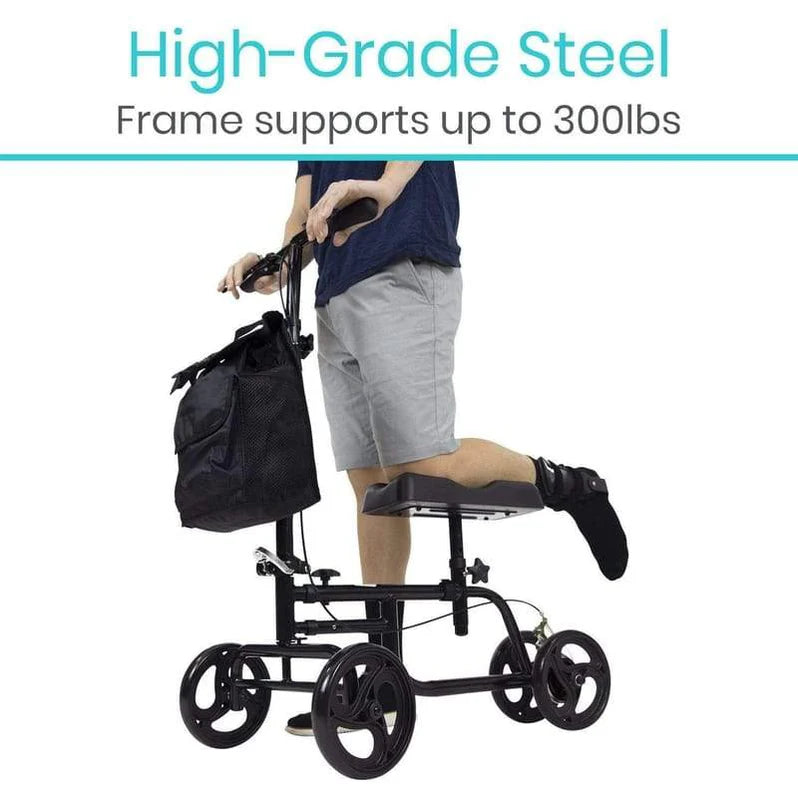

• Weight limit 300 LBS

Assembly:

• Minimal assembly required
• All tools required for assembly included
• For more detail reference our manual

Operating Instructions:

• Center injured leg on the knee pad, covering the entire length of the padding
• Standing as straight as possible, propel yourself forward using uninjured leg
• Engage the security lock before attempting to transfer from the knee walker

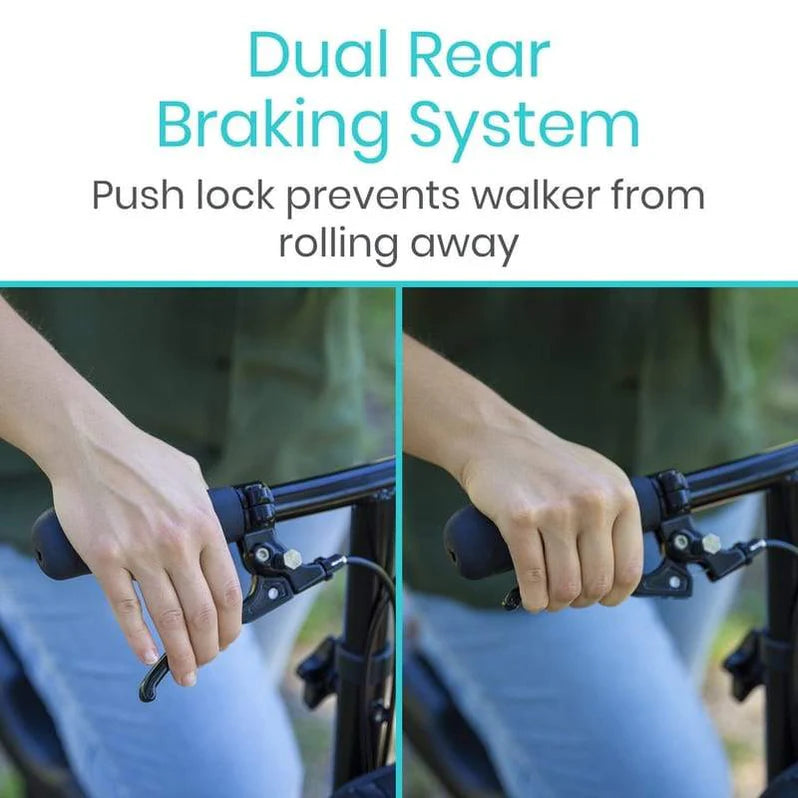

Braking:

• Walker is equipped with a dual wheel braking system.
• To adjust the brakes, turn cable adjuster located on the hand brake.

Adjusting Pad Height:

• Loosen locking lever under the knee pad
• Remove locking pin
• Adjust knee pad to desired height and replace locking pin to secure it in place

Adjusting Handle Height:

• Loosen adjustment screw on the handle by turning it counterclockwise until it can be removed
• Adjust handle bar grip to the desired height

Product is designed for people recovering from:

• Foot surgery
• Broken leg, ankle or foot
• Sprained leg, ankle or foot
• Ulcers of the foot

What's Included:

• Knee walker

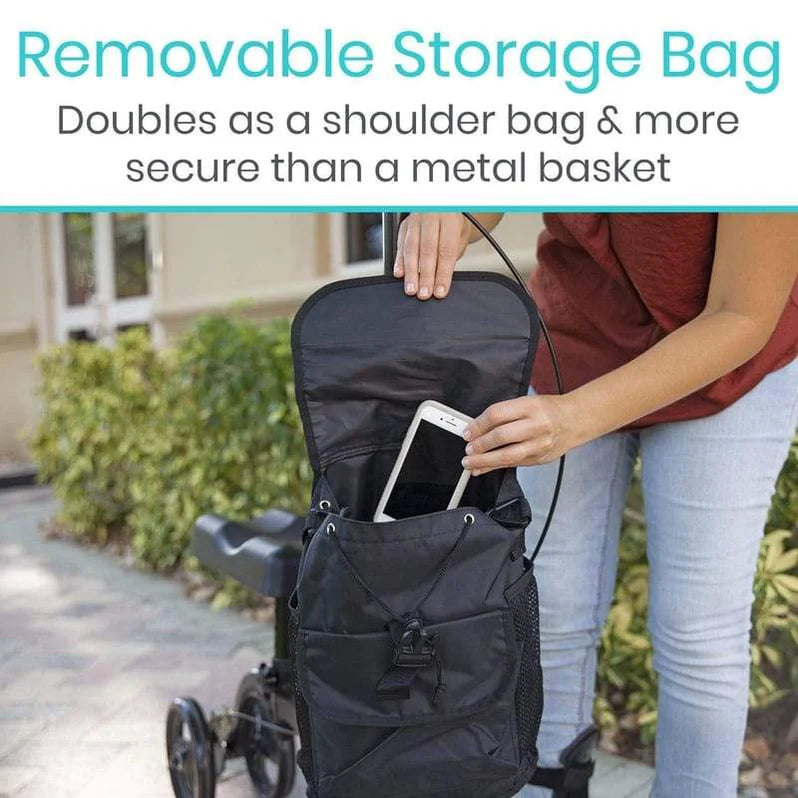

• Storage bag
