McKesson Integrated Diagnostic Wall System - LED Ophthalmoscope, Otoscope, Aneroid Sphygmomanometer, Thermometer & Specula Dispenser

Complete Integrated Diagnostic Wall System for Comprehensive Exam Room Efficiency

The McKesson integrated diagnostic wall system delivers a comprehensive, all-in-one diagnostic solution that transforms exam room functionality by combining essential diagnostic instruments—LED ophthalmoscope, otoscope, wall-mounted aneroid sphygmomanometer, electronic thermometer, and specula dispenser—into a single streamlined wall-mounted unit. This professional-grade system enhances clinical workflow efficiency, reduces equipment clutter, improves infection control, and provides reliable diagnostic capabilities for primary care practices, specialty clinics, urgent care facilities, and hospital exam rooms.

Key Features & Clinical Benefits

• Complete 5-in-1 Diagnostic Integration: Combines ophthalmoscope, otoscope, blood pressure aneroid, electronic thermometer, and specula dispenser in one cohesive wall system, eliminating the need for multiple separate units and creating a centralized diagnostic hub that streamlines exam room workflow
• Energy-Efficient LED Technology: Advanced LED illumination in ophthalmoscope and otoscope provides superior brightness, true tissue color rendition, and extended bulb life (up to 10,000 hours) compared to traditional halogen systems, reducing replacement costs and maintenance interventions
• Automatic On/Off Handle Sensors: Intelligent handle-based activation automatically powers instruments on when removed from the wall unit and off when returned, reducing energy consumption by up to 70%, extending battery life, and minimizing cross-contamination risks by eliminating the need to touch power switches
• 3.5V Coaxial Ophthalmoscope: Professional-grade ophthalmoscope features multiple aperture selections (small, large, fixation, grid, slit) and filter options (red-free, polarizing, cobalt blue) for comprehensive fundoscopic examinations, retinal assessments, and specialized diagnostic procedures across general practice and ophthalmology applications
• MacroView Otoscope Technology: Advanced otoscope design provides nearly complete tympanic membrane visualization with 30% greater magnification than standard otoscopes, enabling superior diagnostic accuracy for otitis media, perforations, foreign bodies, and other ear pathologies while reducing the need for referrals
• SureTemp Plus Electronic Thermometer: Rapid-response digital thermometer delivers accurate temperature readings in 4-6 seconds (oral), 10-13 seconds (pediatric axillary/rectal), and 12-15 seconds (adult axillary), supporting efficient patient throughput and reducing wait times during vital sign collection
• Precision Wall Aneroid Sphygmomanometer: Mercury-free, jeweled-movement manometer certified accurate to within ±3 mmHg (1% of full scale), providing reliable blood pressure measurements that meet clinical accuracy standards while eliminating mercury hazards and environmental concerns
• KleenSpec Specula Dispenser: Integrated dispenser provides organized, hygienic storage and one-handed access to disposable otoscope specula, reducing contamination risks, eliminating loose specula clutter, and ensuring appropriate-sized tips are always readily available

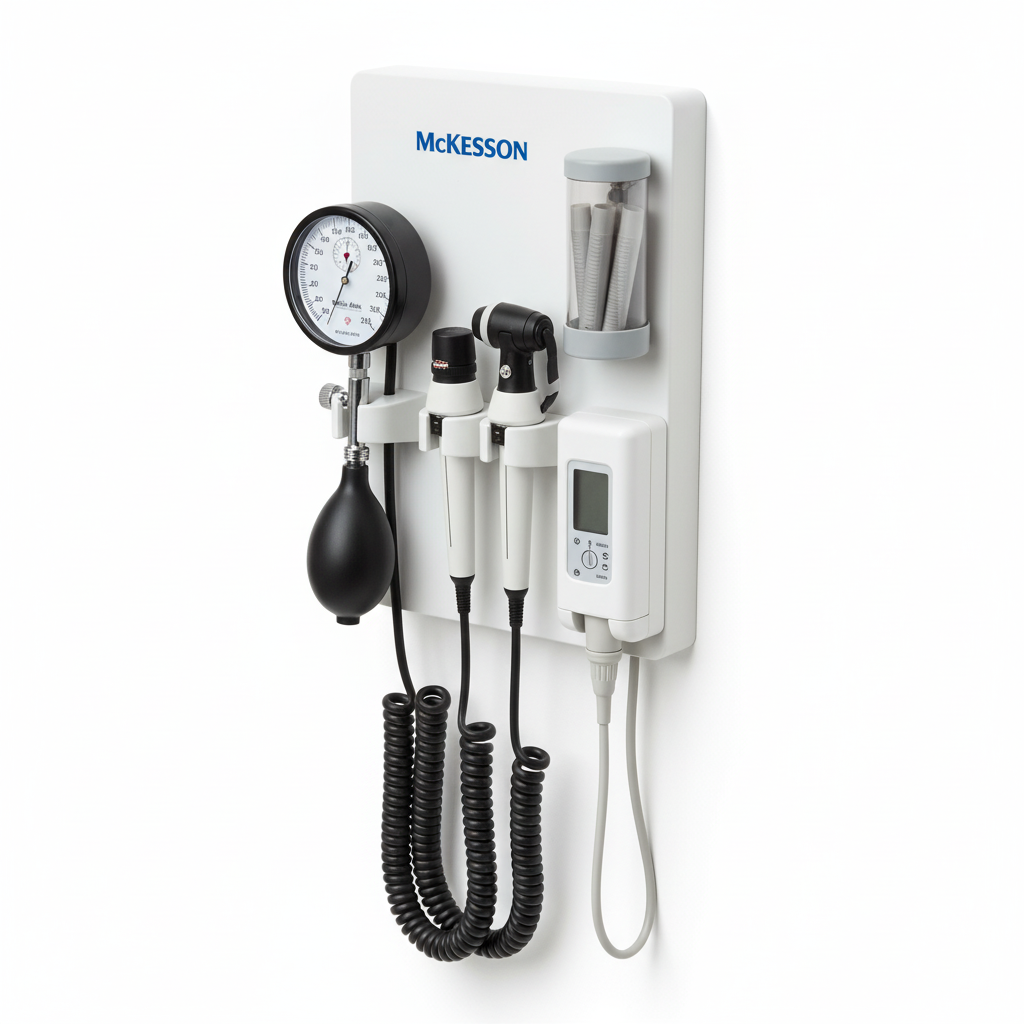

• Space-Saving Wall-Mount Design: Compact vertical configuration (24.1W × 87.2D × 32.6H cm) mounts directly to standard wallboard, freeing valuable counter and cart space while positioning all diagnostic instruments at ergonomic heights for efficient clinical use
• Simple Installation Process: Mounts to standard 30 × 12 inch wallboard area with included hardware, compatible with existing electrical infrastructure, and offers upgrade compatibility with legacy systems for facilities modernizing exam room equipment

Ideal Applications & Clinical Settings

• Primary care physician offices and family medicine practices
• Internal medicine and general practice exam rooms
• Pediatric clinics and children's health centers
• Urgent care and walk-in medical facilities
• Hospital outpatient departments and specialty clinics
• Occupational health and employee wellness centers
• Community health centers and federally qualified health centers (FQHCs)
• Student health services and university medical centers
• Correctional facility medical departments
• Military and veterans affairs medical facilities
• Telemedicine-enabled exam rooms requiring comprehensive diagnostics
• Multi-specialty group practices standardizing equipment

Technical Specifications

• System Components: Ophthalmoscope, otoscope, aneroid sphygmomanometer, electronic thermometer, specula dispenser
• Ophthalmoscope Type: 3.5V coaxial LED
• Ophthalmoscope Apertures: Small, large, fixation, grid, slit
• Ophthalmoscope Filters: Red-free, polarizing, cobalt blue
• Otoscope Type: MacroView with LED illumination
• Otoscope Magnification: 30% greater than standard otoscopes
• Thermometer Type: SureTemp Plus electronic digital
• Thermometer Speed: 4-6s oral, 10-13s pediatric axillary/rectal, 12-15s adult axillary
• Sphygmomanometer Type: Wall-mounted aneroid, mercury-free
• Sphygmomanometer Accuracy: ±3 mmHg (1% of scale)
• Sphygmomanometer Movement: Jeweled precision movement
• Power Activation: Automatic handle-based sensors
• Mounting Requirements: 30 × 12 inch wallboard area
• System Dimensions: 24.1 cm (W) × 87.2 cm (D) × 32.6 cm (H)
• Compatibility: Upgrade-compatible with select legacy systems

Integrated Design: Transforming Exam Room Efficiency

Traditional exam rooms require multiple separate diagnostic instruments scattered across counters, carts, or drawers, creating workflow inefficiencies as clinicians search for equipment, manage tangled cords, and navigate cluttered workspaces. The McKesson integrated wall system eliminates these challenges by consolidating all essential diagnostic tools into a single, organized, wall-mounted unit that positions instruments at consistent, ergonomic locations.

This centralized approach reduces the time clinicians spend locating and retrieving instruments, allowing them to maintain focus on patient interaction rather than equipment management. The vertical wall-mount configuration frees valuable counter space for computers, documentation materials, or procedure supplies while creating a clean, professional exam room appearance that enhances patient confidence.

For practices managing multiple exam rooms, the standardized wall system ensures identical equipment placement across all rooms, reducing the cognitive load on providers who rotate between spaces and enabling more efficient room-to-room transitions. Medical assistants, nurses, and physicians know exactly where each instrument is located regardless of which exam room they enter, supporting consistent workflows and reducing errors.

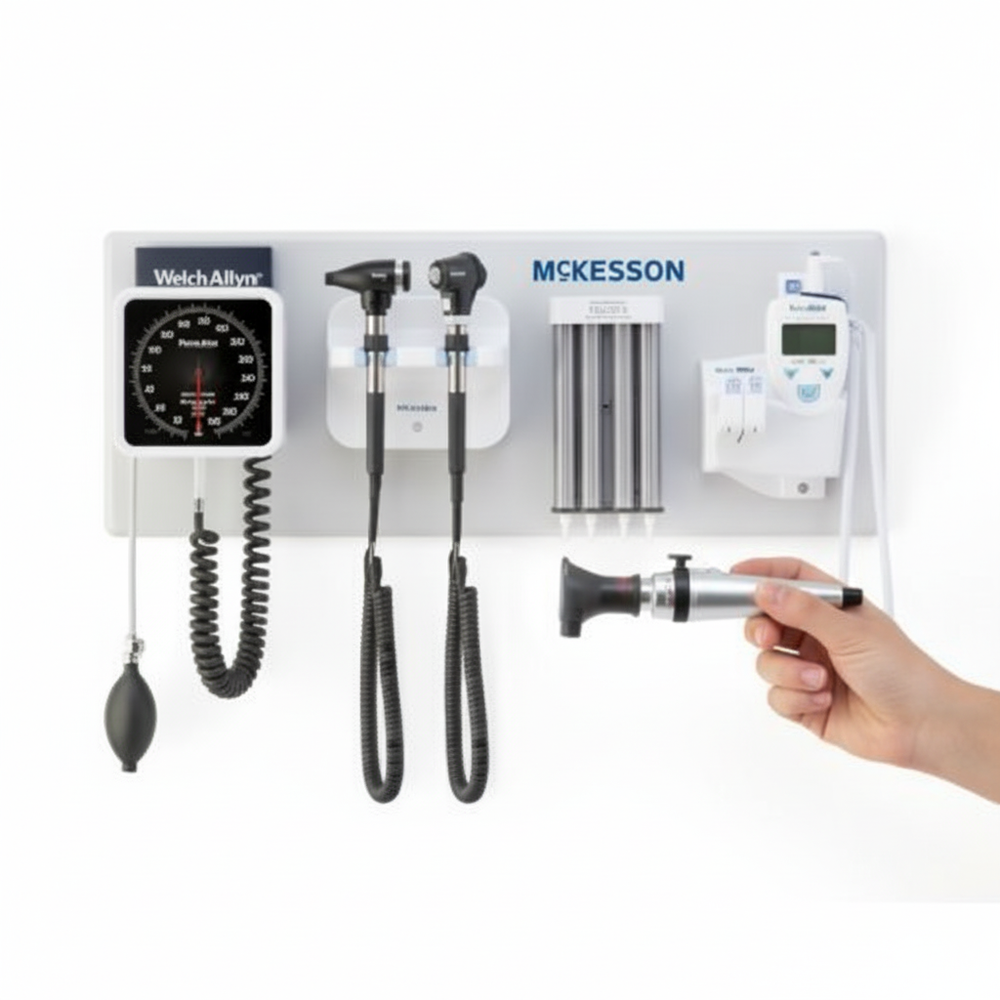

Automatic Handle Sensors: Energy Efficiency Meets Infection Control

The intelligent handle-based activation system represents a significant advancement over traditional power switches that require manual operation. When clinicians remove an instrument from the wall unit, integrated sensors detect the handle movement and automatically power on the LED illumination. Upon returning the instrument to its holder, the system automatically powers off, eliminating wasted energy from instruments left on between patients.

This automation delivers multiple benefits beyond energy savings. By eliminating the need to touch power switches, the system reduces one potential vector for cross-contamination between patients. Clinicians can retrieve instruments with clean hands, perform examinations, and return instruments without touching potentially contaminated switches that could transfer pathogens to subsequent users.

The automatic power-off function also extends battery life in battery-powered components, reducing the frequency of battery replacements and associated maintenance costs. Facilities report up to 70% reduction in energy consumption compared to systems where instruments remain powered on continuously or where staff forget to turn off instruments between uses.

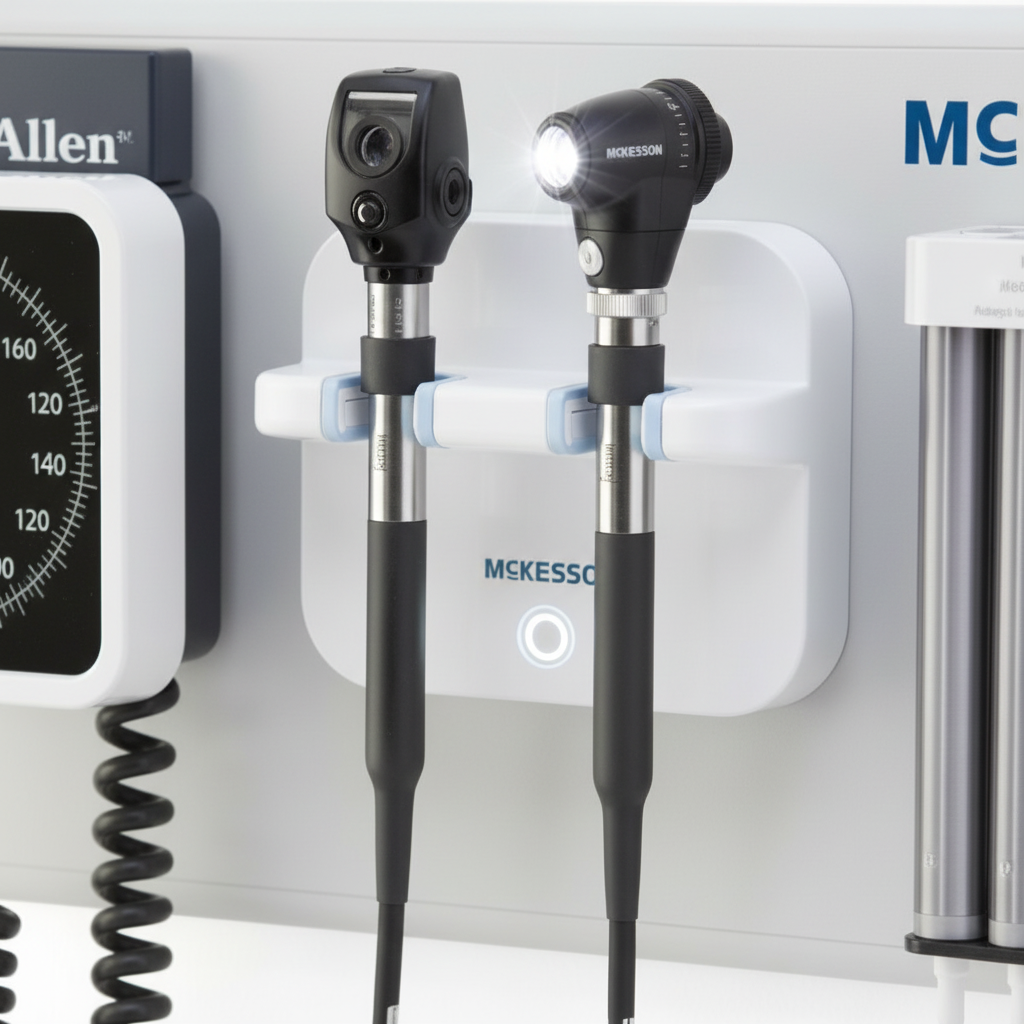

3.5V Coaxial Ophthalmoscope: Superior Fundoscopic Examination

The integrated 3.5V coaxial ophthalmoscope provides the optical quality and versatility required for comprehensive fundoscopic examinations in primary care and specialty settings. The coaxial optical design aligns the viewing axis with the illumination axis, reducing reflections and providing clearer visualization of the fundus, optic disc, retinal vessels, and macula.

Multiple aperture selections enable customization for different examination scenarios: small aperture for undilated pupils or patients with cataracts, large aperture for dilated examinations, fixation target for assessing central vision, grid for estimating lesion size, and slit aperture for evaluating anterior chamber depth or retinal elevation. This versatility eliminates the need for multiple specialized ophthalmoscopes.

Filter options expand diagnostic capabilities beyond standard fundoscopy. The red-free (green) filter enhances visualization of retinal nerve fiber layer, hemorrhages, and vascular patterns by filtering out red wavelengths. Polarizing filters reduce corneal reflections for improved anterior segment examination. Cobalt blue filters enable fluorescein pattern assessment for contact lens fitting or corneal abrasion detection.

MacroView Otoscope: Enhanced Tympanic Membrane Visualization

The MacroView otoscope technology delivers a quantum leap in diagnostic capability compared to standard otoscopes. The advanced optical system provides 30% greater magnification while simultaneously offering a wider field of view, enabling clinicians to visualize nearly the entire tympanic membrane in a single view without repositioning the speculum.

This enhanced visualization improves diagnostic accuracy for otitis media, allowing clearer assessment of tympanic membrane color, position, translucency, and mobility. Clinicians can more confidently differentiate between acute otitis media, otitis media with effusion, and normal variants, reducing unnecessary antibiotic prescriptions and improving treatment decisions.

The superior optics also facilitate detection of subtle findings including small perforations, retraction pockets, cholesteatoma, foreign bodies, or early signs of chronic ear disease that might be missed with standard otoscopes. This diagnostic precision reduces the need for specialist referrals, improves patient outcomes, and enhances practice efficiency.

SureTemp Plus Thermometer: Rapid, Accurate Temperature Assessment

The integrated SureTemp Plus electronic thermometer delivers the speed and accuracy required for efficient vital sign collection in high-volume clinical settings. Oral temperature readings in 4-6 seconds enable rapid patient throughput without compromising accuracy, while pediatric and adult axillary modes provide appropriate measurement protocols for different patient populations.

The thermometer's predictive algorithm technology analyzes the rate of temperature change to project final temperature before thermal equilibrium is reached, dramatically reducing measurement time compared to traditional thermometers that require full equilibration. This speed advantage is particularly valuable in pediatric settings where patient cooperation is limited or in urgent care environments where rapid triage is essential.

Integrated wall mounting ensures the thermometer is always charged and ready for use, eliminating the battery management challenges and "thermometer missing" situations common with portable units. Probe covers stored in an adjacent dispenser support infection control protocols and streamline the measurement process.

Precision Aneroid Sphygmomanometer: Reliable Blood Pressure Measurement

The wall-mounted aneroid sphygmomanometer provides the accuracy and reliability required for clinical blood pressure measurement while eliminating the mercury hazards and environmental concerns associated with traditional mercury sphygmomanometers. The jeweled-movement mechanism ensures smooth, precise needle operation and long-term calibration stability.

Certified accuracy to within ±3 mmHg (1% of full scale) meets or exceeds clinical standards for blood pressure measurement devices, providing confidence in diagnostic and treatment decisions based on blood pressure readings. The large, easy-to-read dial with clear markings supports accurate reading even in varied lighting conditions.

Wall mounting positions the gauge at optimal viewing height and angle, reducing parallax errors that can occur when reading gauges positioned at awkward angles. The integrated design also eliminates the tangled tubing and storage challenges associated with portable aneroid units, while ensuring the sphygmomanometer is always available when needed.

KleenSpec Dispenser: Organized, Hygienic Specula Access

The integrated specula dispenser transforms otoscope tip management from a source of clutter and contamination risk into an organized, hygienic system. The dispenser holds multiple sizes of disposable specula in separate compartments, allowing one-handed selection of the appropriate size without touching other specula or searching through drawers.

This organization supports infection control by ensuring each speculum is used only once and then discarded, eliminating the reprocessing challenges and contamination risks associated with reusable specula. The dispenser's position adjacent to the otoscope streamlines workflow, allowing clinicians to retrieve the otoscope and select a speculum in a single motion.

Installation and Facility Integration

The wall system mounts to standard wallboard using included hardware, with electrical connections to standard outlets. The 30 × 12 inch mounting footprint fits easily in most exam rooms without requiring structural modifications. Installation typically requires 1-2 hours by facilities maintenance staff or professional installers.

For facilities upgrading from older diagnostic systems, the unit offers compatibility with select legacy systems, potentially allowing reuse of existing electrical infrastructure or mounting locations. This upgrade path reduces installation costs and minimizes exam room downtime during equipment transitions.

Return on Investment and Total Cost of Ownership

While the integrated wall system represents a significant upfront investment, the total cost of ownership advantages become apparent over the system's multi-year service life. Energy savings from automatic power management, reduced bulb replacement costs from LED technology, and eliminated battery replacement expenses for portable instruments contribute to ongoing operational savings.

Improved workflow efficiency translates to increased patient throughput, allowing practices to see more patients per day without extending hours or adding staff. Enhanced diagnostic accuracy reduces unnecessary referrals, repeat visits, and treatment failures, improving patient outcomes while reducing costs.

The professional appearance and modern technology also enhance patient satisfaction and practice reputation, supporting patient retention and positive word-of-mouth referrals that drive practice growth.

Quality Assurance and Reliability

Manufactured to medical device quality standards, the integrated wall system delivers consistent performance throughout years of daily clinical use. Each component undergoes rigorous testing to ensure accuracy, reliability, and safety. The modular design allows individual component service or replacement without replacing the entire system, supporting long-term value.

Why Choose McKesson Diagnostic Solutions?

McKesson has served healthcare providers for over 190 years, delivering the quality, innovation, and reliability that clinicians depend on. This integrated diagnostic wall system represents the same commitment to clinical excellence and practice efficiency that healthcare organizations trust across medical equipment, supplies, and technology solutions. When you choose McKesson diagnostic systems, you're partnering with an industry leader that understands the evolving needs of modern medical practices and the critical role that quality diagnostic equipment plays in delivering exceptional patient care.
