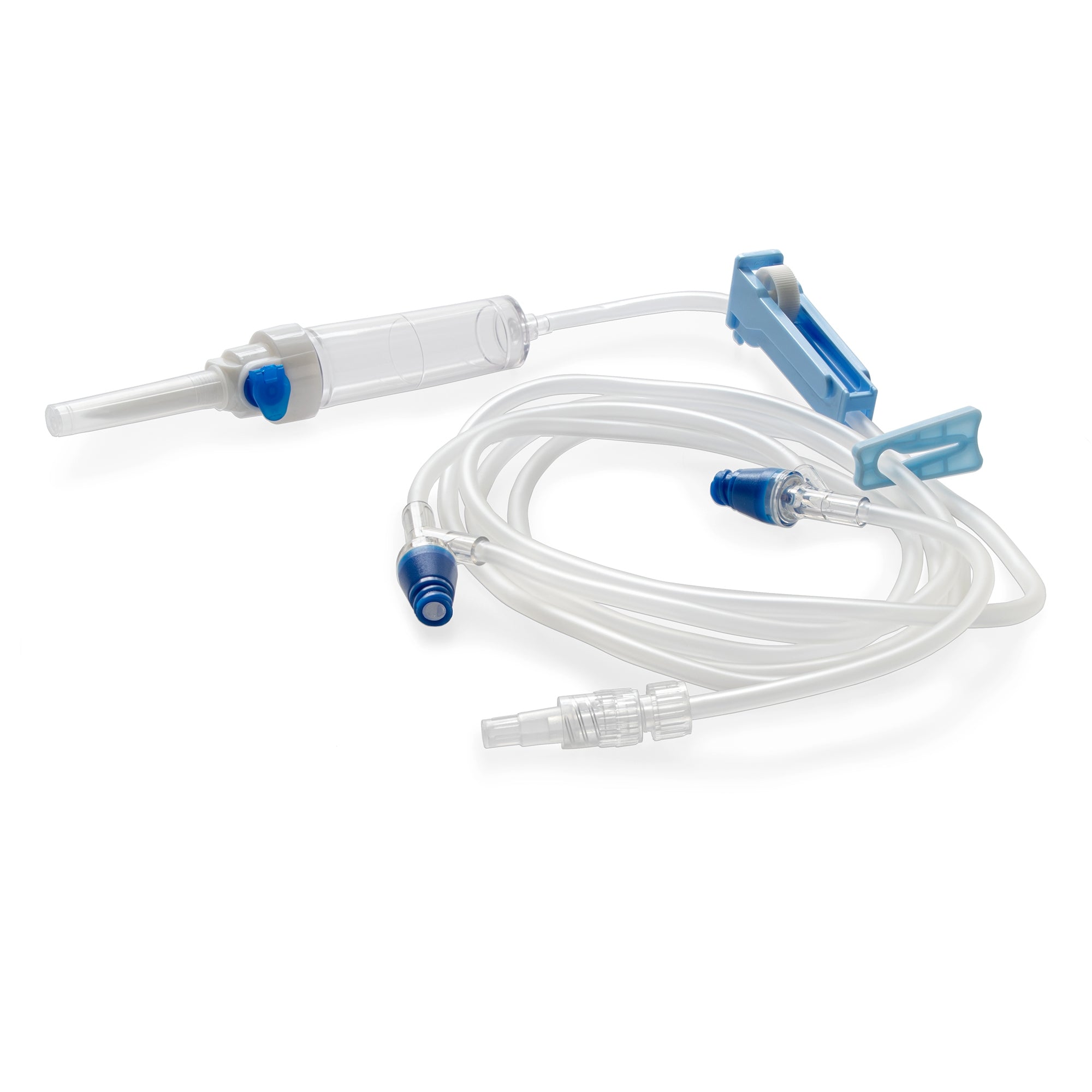

McKesson MedStream Gravity IV Administration Set - Sterile, Needle-Free Y-Port, 20 Drops/mL, DEHP-Free

Professional-Grade Gravity IV Administration Set for Safe, Controlled Infusion Therapy

The McKesson MedStream Gravity IV Administration Set delivers reliable, precise fluid delivery for intravenous therapy in hospitals, clinics, long-term care facilities, and home healthcare settings. Engineered with dual needle-free Y-port connectors, air-vented spike technology, and precision flow control mechanisms, this sterile primary IV set ensures safe medication administration and optimal patient outcomes across diverse clinical applications.

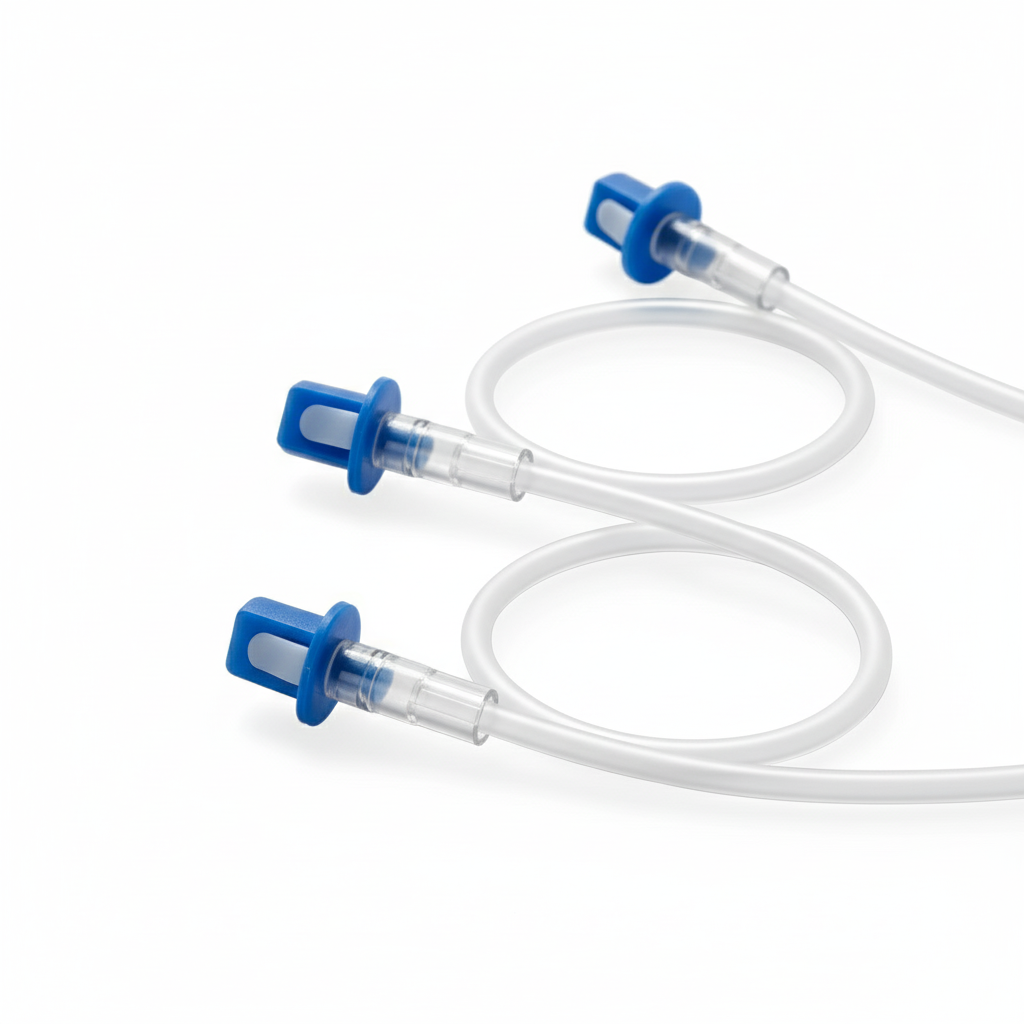

Advanced Needle-Free Y-Port Technology

The dual needle-free connector system provides critical advantages for medication administration and patient safety:

• Needlestick Injury Prevention: Eliminates the need for needles when adding medications to the IV line, protecting healthcare workers from accidental needlestick injuries and bloodborne pathogen exposure
• Dual Y-Port Configuration: Two strategically positioned needle-free connectors allow simultaneous or sequential medication infusion without interrupting primary fluid delivery
• Closed System Protection: Maintains sterile barrier integrity during medication administration, reducing contamination risks and healthcare-associated infection rates
• Universal Compatibility: Accepts standard luer-lock syringes and secondary IV sets for versatile medication delivery options
• Easy Access Design: Conveniently positioned ports enable quick medication administration during emergency situations or routine care

Precision Flow Control & Monitoring Features

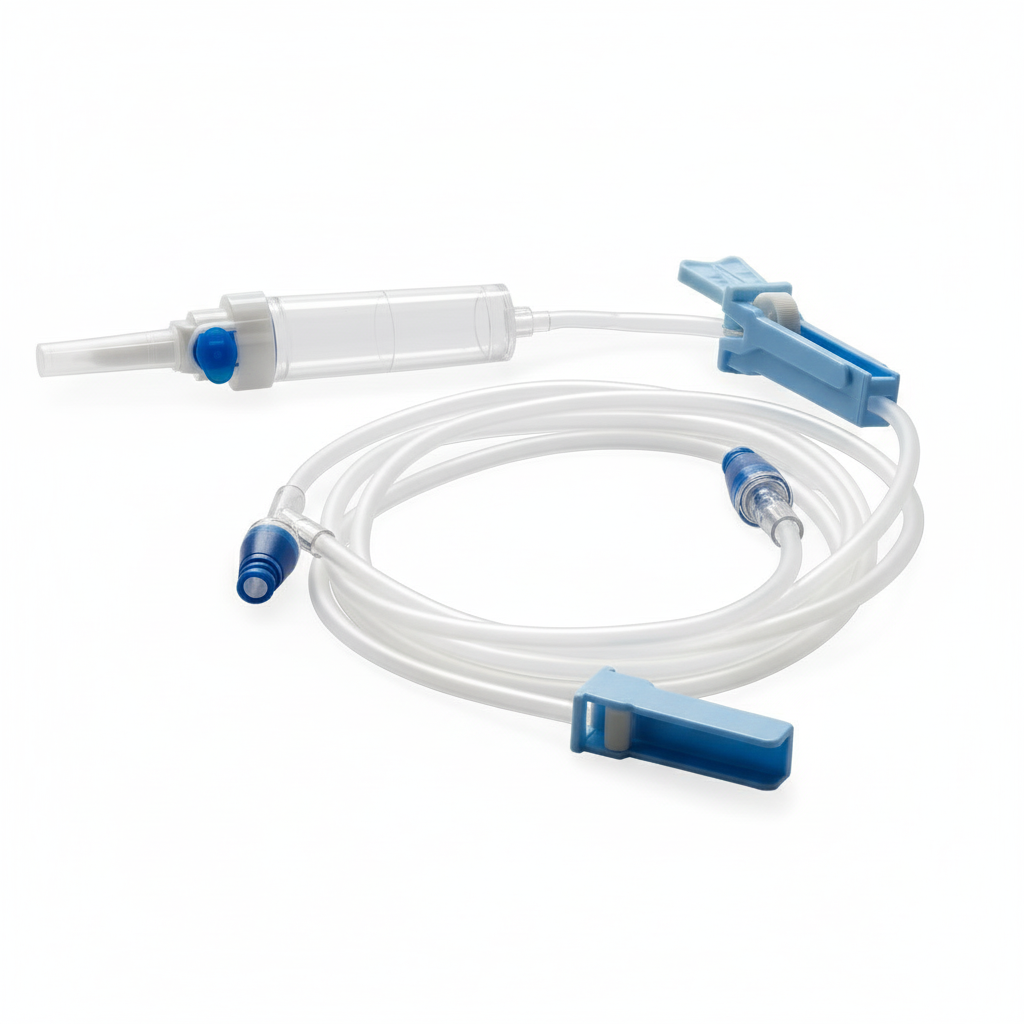

• Dual Clamp System: Integrated slide clamp and roller clamp provide both quick on/off control and precise flow rate adjustment for accurate fluid delivery

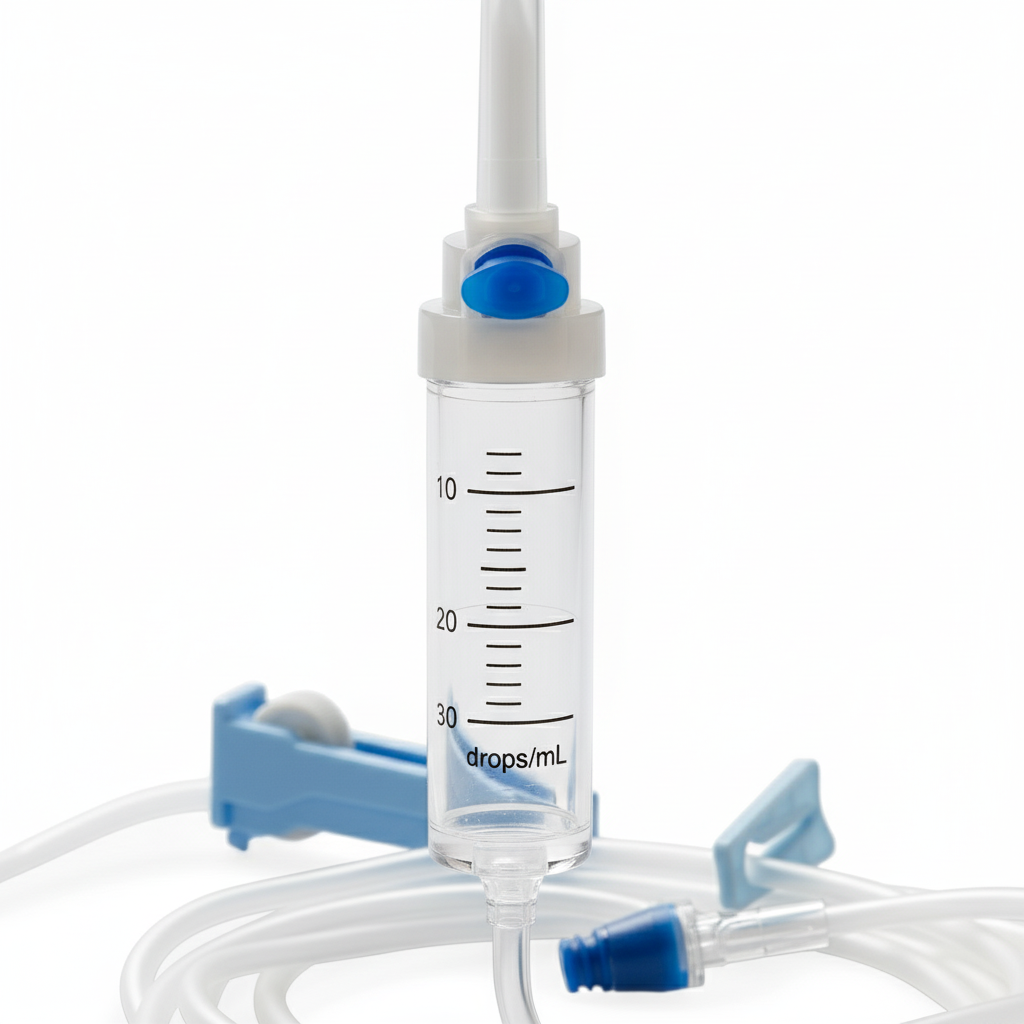

• 20 Drops/mL Drip Rate: Standardized drip chamber calibration enables accurate manual flow rate calculation and monitoring (1 mL = 20 drops)
• Clear Drip Chamber: Transparent chamber with visible drip formation allows easy visual confirmation of fluid flow and air detection

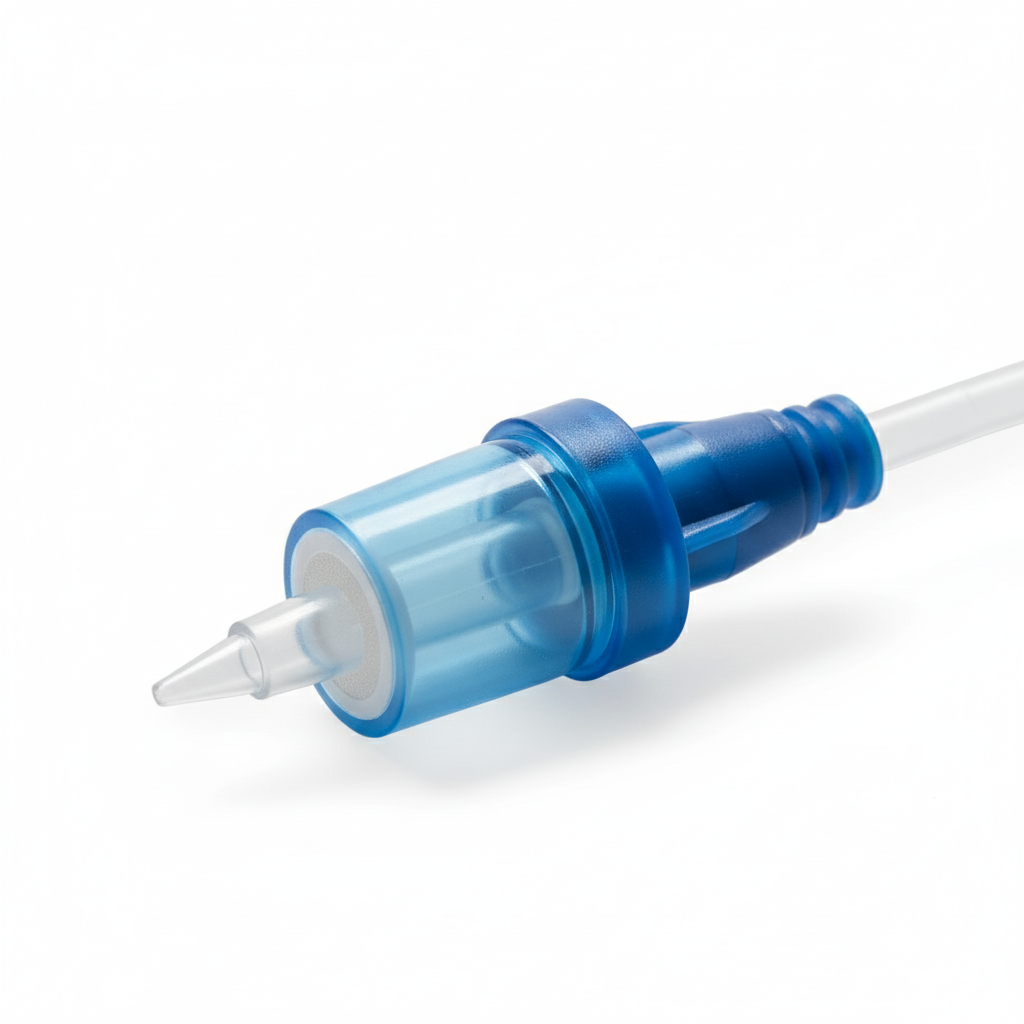

• Air-Vented Spike with Cap: Vented spike design equalizes pressure in rigid IV containers while the protective cap maintains sterility until use
• Standard Bore Tubing: Optimized internal diameter balances flow efficiency with medication compatibility across 80-inch length

Safety-First Design & Material Standards

Patient safety and clinical compliance are paramount in every aspect of this IV administration set:

• DEHP-Free Construction: Manufactured without di(2-ethylhexyl) phthalate (DEHP), eliminating concerns about plasticizer leaching during lipid-based or long-duration infusions
• Latex-Free Materials: Not made with natural rubber latex, protecting patients and healthcare workers with latex sensitivities or allergies
• Medical-Grade PVC Tubing: High-quality polyvinyl chloride construction ensures chemical compatibility, flexibility, and kink resistance throughout the infusion process

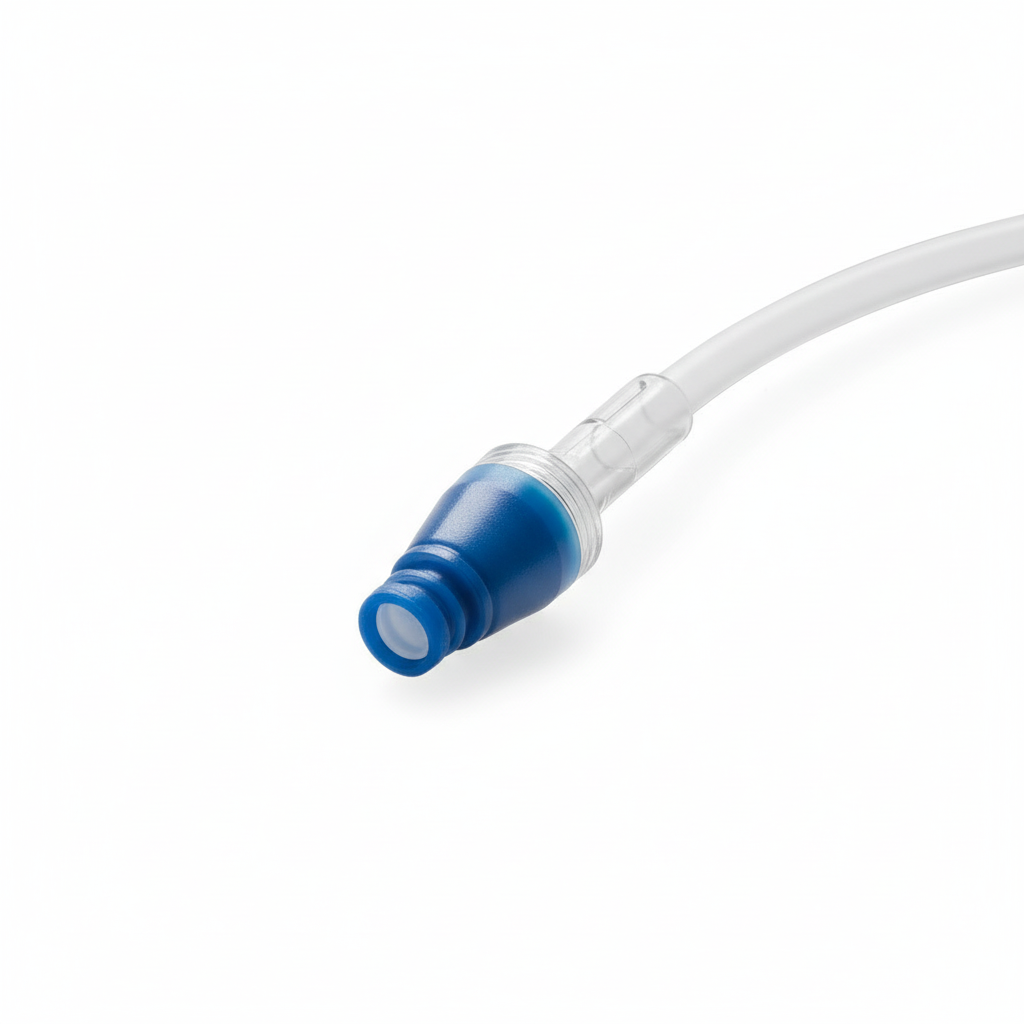

• Male Luer Lock Connection: Secure threaded connector prevents accidental disconnection from IV catheters and ensures leak-free attachment
• Sterile Single-Use Design: Individually packaged in sterile barrier for immediate use, eliminating reprocessing requirements and cross-contamination risks

Clinical Applications & Indications

This versatile gravity IV administration set supports a comprehensive range of infusion therapy applications:

• Primary Fluid Therapy: Delivery of crystalloid solutions (normal saline, lactated Ringer's, dextrose solutions) for hydration, electrolyte replacement, and volume resuscitation
• Medication Administration: Continuous or intermittent infusion of IV medications through primary line or Y-port injection sites
• Blood Product Transfusion: Compatible with packed red blood cells, platelets, and plasma products when used with appropriate filters
• Parenteral Nutrition: DEHP-free construction makes this set suitable for total parenteral nutrition (TPN) and lipid emulsion delivery
• Emergency Resuscitation: Rapid fluid administration during shock, trauma, or critical care scenarios
• Surgical Procedures: Intraoperative and post-operative fluid management in operating rooms and recovery areas
• Outpatient Infusion: Chemotherapy, antibiotic therapy, and hydration treatments in ambulatory infusion centers
• Home Healthcare: Long-term IV therapy for patients receiving care in home settings under professional supervision

Product Specifications

• Brand: McKesson MedStream
• Manufacturer: McKesson
• Product Type: Primary IV Administration Set
• Administration Method: Gravity flow
• Material: Polyvinyl Chloride (PVC)
• Tubing Type: Standard bore tubing
• Tubing Length: 80 inches
• Priming Volume: 2.6 mL
• Drip Rate: 20 drops/mL
• Port Type: Dual needle-free Y-port connectors
• Spike Type: Air-vented spike with protective cap
• Connection Type: Male luer lock connector
• Flow Control: Slide clamp and roller clamp
• Back Check Valve: Without back check valve
• Filter: Without inline filter
• Flow Regulator: Without automatic flow regulator
• DEHP Status: DEHP-free tubing
• Latex Content: Not made with natural rubber latex
• Sterility: Sterile, single-use only
• Storage Temperature: Do not store above 104°F (40°C)
• MPN: MS9212NF
• SKU: MCMS9212NF-MI

Proper Setup & Administration Guidelines

For safe and effective IV therapy administration, follow these essential steps:

• Verify physician orders for correct solution, medication, flow rate, and duration
• Perform hand hygiene and don appropriate personal protective equipment
• Inspect the IV set package for integrity; do not use if package is damaged or compromised
• Open the sterile package using aseptic technique
• Close both the slide clamp and roller clamp before spiking the IV solution bag
• Remove the protective cap from the vented spike and insert into the IV solution container port
• Hang the IV bag on an IV pole at appropriate height (typically 36 inches above insertion site)
• Squeeze the drip chamber to fill it halfway (approximately 1/3 to 1/2 full)
• Open the roller clamp slowly to prime the tubing, removing all air bubbles
• Close the clamp once fluid reaches the male luer lock connector
• Connect securely to the patient's IV catheter using aseptic technique
• Adjust the roller clamp to achieve the prescribed drip rate (count drops for 15 seconds, multiply by 4)
• Monitor the infusion site, flow rate, and patient response throughout therapy

Flow Rate Calculation Guide

To calculate the correct drip rate for prescribed infusion volumes:

• Formula: (Total volume in mL × Drop factor) ÷ Time in minutes = Drops per minute
• Example: To infuse 1000 mL over 8 hours with 20 drops/mL set: (1000 × 20) ÷ 480 = 41.7 drops/minute
• Count drops in the drip chamber for 15 seconds and multiply by 4 to verify drops per minute
• Adjust the roller clamp as needed to maintain the prescribed rate
• Recheck flow rate hourly and after patient position changes

Storage & Handling Recommendations

To maintain product sterility and material integrity:

• Store in a cool, dry location away from direct sunlight and heat sources
• Do not store above 104°F (40°C) to prevent material degradation
• Keep packages sealed until immediately before use
• Inspect packaging for tears, punctures, or moisture before opening
• Do not use if sterile package is compromised
• Rotate stock using FIFO (first-in, first-out) inventory management
• Check expiration dates before use

Why Choose McKesson MedStream IV Sets?

McKesson has been a trusted healthcare partner for over 190 years, supplying hospitals, clinics, and healthcare facilities with clinical-grade medical devices that meet the highest quality and safety standards. The MedStream product line represents McKesson's commitment to delivering reliable IV therapy solutions that healthcare professionals depend on for safe, effective patient care.

These gravity IV administration sets combine proven design principles, safety-focused features, and quality manufacturing to support optimal infusion therapy outcomes across diverse clinical settings.

FSA/HSA Eligible: Qualified medical expense under Flexible Spending Accounts and Health Savings Accounts for convenient reimbursement.

Trust McKesson MedStream for professional-grade IV administration sets engineered for safety, precision, and clinical excellence.
